CHEREAU – Refrigerated vehicles – Our fruit and vegetables produce trailers
Semi-trailer · Fruit and vegetables
Although their carriage is not regulated by the ATP, fresh fruit and vegetables are often transported in temperature-controlled vehicles in order to guarantee a high level of quality. Often exported far from where they are produced in specific packaging with very tall pallets, they need long-distance type semi-trailers with a very high working height.
CHASSIS-C
The legendary CHEREAU road-holding capacity is down to a specific chassis with a wider-than-usual axle track. This chassis combines robustness and light weight thanks to the use of high-strength steel, and offers a wide range of customised configurations for a solution perfectly adapted to the customer’s needs.
Further informationVIP INSULATION

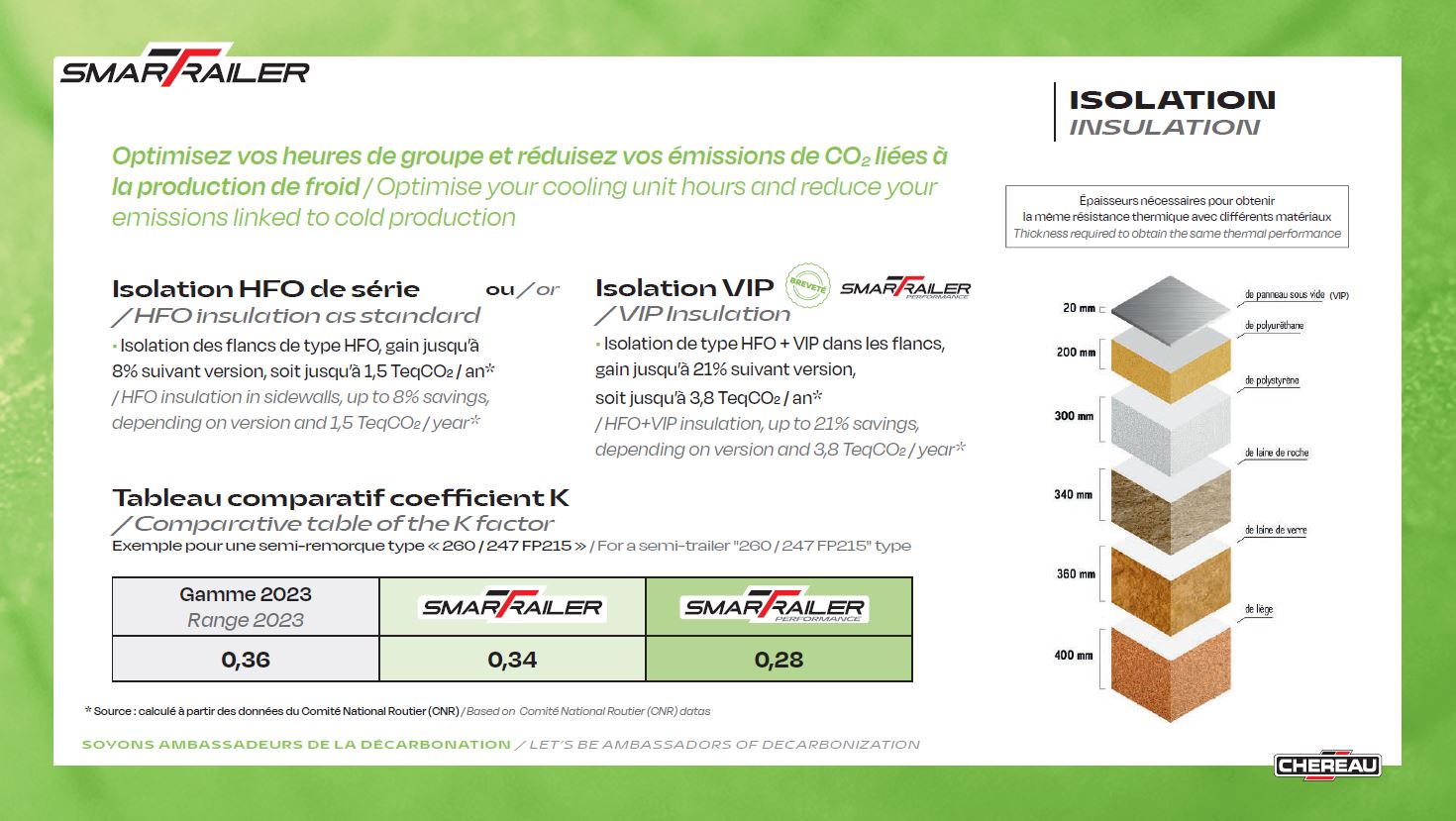

VIP, or Vacuum Insulated Panel technology, is a breakthrough innovation based on vacuum (the best insulation there is), and makes it possible to achieve record insulation performance.
A CHEREAU SmarTrailer Performance semi-trailer equipped with a recessed lashing rail can achieve a K factor of 0.27!
AEROTOP-C
Component of the CHEREAU aerodynamic system, the AeroTop-C is an aluminium roof deflector making it possible to save 0.3 L/100 km on long-distance trips.
AEROFLAP-C
Component of the CHEREAU aerodynamic system reducing consumption by 0.7 L/100 km or 1.1 L/100 km when combined with the AeroTop-C.
These aluminium components deploy and fold automatically when the rear doors are operated.
Further information
AIREFFICIENT-C
This ventilation duct system, developed by CHEREAU, enables the same temperature to be maintained throughout the entire body to the nearest degree and cools down the walls quicker. It optimises the performance of the refrigeration unit.
DOUBLE DECK ATD II
The ATD II system makes it possible to transport up to 66 pallets measuring 80 x 120 on two levels while complying with regulations and providing proper ventilation of the load. This optimises the flow of goods.
RECESSED RAILS
The recessed rails complete the design, optimising the working width.
1/2 AND 1/3 LASHING FRAME
Modular system allowing goods to be secured whatever the configuration of the load.
PALLET CARRIER
The robust CHEREAU steel pallet carrier holds 36 pallets measuring 80×120. Its retractable doors open upwards, offering easy access, and can be fitted with an anti-theft device.
It can be fully customised in the customer’s colours.
The pallet carrier enables a reduction in fuel consumption of 0.5 L/100 km as compared to side underrun bars.
COMPARTMENT SOLUTIONS
A wide variety of compartments are available, ranging from tool boxes, food boxes and spare-wheel compartments to compartments with beams for two levels, etc. to satisfy all the requirements of long-distance transport.
TANK SECURITY
The CHEREAU tank has a capacity of 250 litres and allows a pallet carrier to be fitted.
It can be filled from both sides, right or left. It is protected by a lockable cap and an anti-siphoning device as standard. The direct reading gauge is fitted on the left side (or right side as an option). An electric fuel level measuring device can also be fitted.
BUMPER-C
CHEREAU’s patented Bumper-C protects the vehicle when docking and has been a reference for over 15 years.
Further information
FLEX-C LED
A retracting light bracket avoiding damage to the lights in case of rear impacts.
Further informationCITYLIGHT
This warning light system provides dynamic flash signalling to alert road users that a delivery is underway and a powerful work light to illuminate the rear of the vehicle.
ANTI-THEFT AND ANTI-INTRUSION SOLUTIONS
CHEREAU offers numerous solutions to keep the goods transported safe, ranging from latches and padlocks to the most sophisticated connected door locking systems.
DOOR CONTACT
Whether to automatically switch off the refrigeration unit when the vehicle door is opened, or to feed back “doors open” information to the dashboard via telematics, the door contact is an essential accessory for energy efficiency and operating security.
TYRE PRESSURE MONITORING SYSTEM
This system has three main advantages. It avoids excess fuel consumption linked to under-inflation, reduces premature tyre wear and minimises the risk of accident.
It can be supplemented by an automatic re-inflation system.
CONNECTBOX
The ConnectBox is a new interface box between the tractor and the trailer. This standard equipment allows for expanded functionality and safety options.
These include flashing clearance lights, reversing light delay and flash warning before the lights go out.
MULTI-ENERGY COOLING SOLUTIONS
CHEREAU has mastered all the existing technologies, from standard fuel- or gas-powered units to hybrid or 100% electric units.
